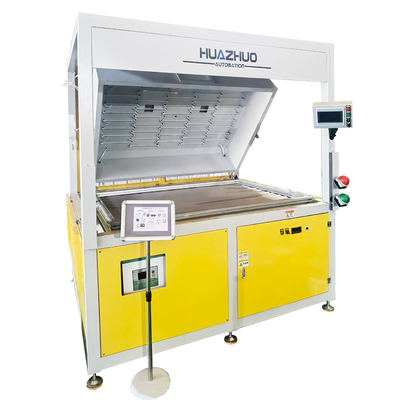

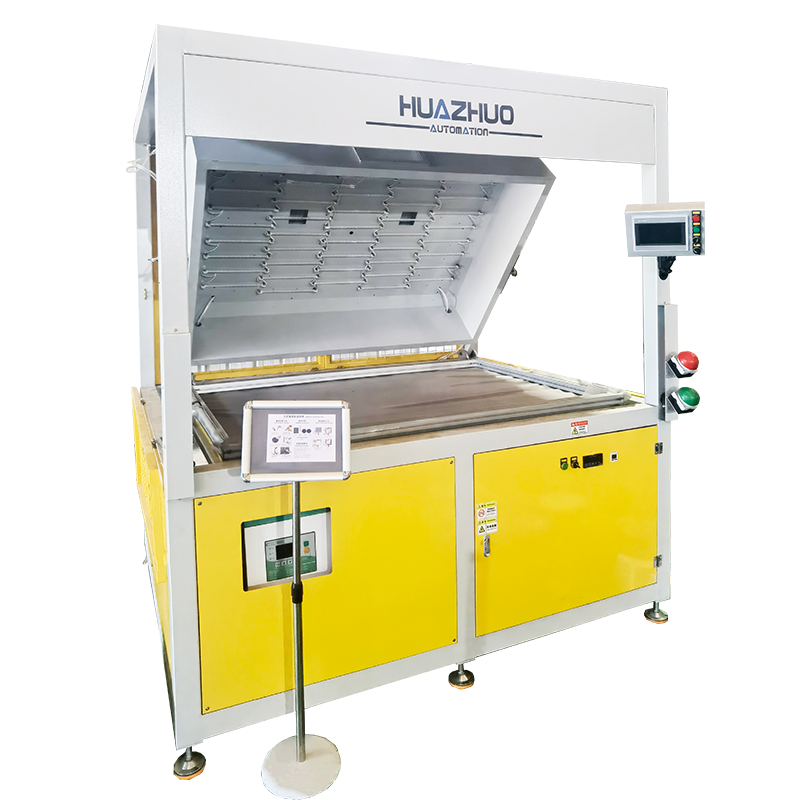

Huazhuo's Vertical Vacuum Forming Machine is a high-efficiency solution designed for forming complex automotive interior panels using thick thermoplastic sheets (1–10mm).
This advanced forming system integrates servo-driven motion, precise temperature zones, and dual-sided infrared heating to ensure uniform thickness and superior molding accuracy.
Key Features
1. Customizable Forming Size Capability
Customizing equipment and mold size based on product dimensions
Supports a wide range of thermoplastic sheets: ABS, PP, PC, PMMA, PS, PE,etc
2. Dual-Sided Fast Heating System
Medium-wave infrared tubes with fast heat-up, no preheat required
Independent zone adjustment and real-time temperature feedback
3. Smart Temperature Control System
Touchscreen interface for intuitive setting and data storage
Energy-saving logic: heating only activates at working station
4. Anti-Sagging & Bubble Blowing System
Automatically lifts softened sheets to prevent sag
Adjustable air pressure for bubble blowing
Improves thickness uniformity and forming consistency
5. Pneumatic Demolding System
Air-assisted blowback for easy part release
Suitable for deep or fragile automotive interior molds
6. Electrical & Safety Systems
Siemens PLC with HMI interface
Neatly wired with full short-circuit protection
Equipped with safety light curtains, press-frame anti-fall locks, alarm lights
Technical Specifications
|
Item Name
|
Vertical Vacuum Forming Machine for Automotive Interior Parts
|
|
Voltage
|
380V
|
|
Forming Size / Depth
|
Customized
|
|
Control System
|
Siemens/Mitsubishi PLC + Touchscreen HMI
|
|
Motor
|
Servo Motor
|
|
Heating Power
|
Upper: 128kW, Lower: 128kW
|
|
Heating Type
|
Medium-wave IR heating tubes
|
|
Vacuum
|
Dual-stage vacuum system
|
|
Cooling
|
Powerful fan cooling
|
|
Demolding
|
Pneumatic blowback
|
|
Machine/Mould Size
|
Customized
|
|
Safety Protection
|
Safety Light Curtains, Press-frame Anti-fall Locks, Alarm Lights
|
Applications
Ideal for automotive interior parts such as:
Door panels
Automotive Interior Trims
Dashboard components
Trunk liners
Glove box covers
Battery compartment lids
Decorative trim components
Why Choose Huazhuo?
20,000m² R&D & Manufacturing Facility in Suzhou, China
12+ Years Experience in custom plastic forming automation
Global delivery for OEM & Tier 1 automotive suppliers
Fast mold changeovers and customized tooling available
After-Sales Support
1-Year Quality Warranty
Remote Technical Support (via video and software)
On-site Commissioning & Operator Training (optional)
Quick Replacement of Critical Parts
